- Place of Origin: wuhan
- Brand Name: qidakon
- Model Number: 2YW1800-74

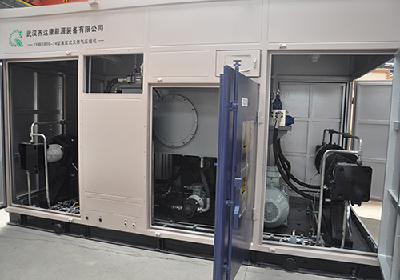

1. Product Introduction
2YW1800-74 is designed for the wellhead gas and meets the process requirement of transporting gas and liquid mixed, it has advantages of widely range of suction pressure, low failure rate, low energy consumption, less leakage and low noise and it is the trend of wellhead gas compressor.
2. Parameters.
Key Parameters | Suction pressure（MPa） | 4-12 | |
Discharge pressure（MPa） | 13 | ||
Suction temperature（℃） | -20-40 | ||
Working Voltage（VAC） | 380±10% | ||
Working temperature（℃） | -40-45 | ||
Motor Power（kW） | 2*37 | ||
Total Power（kW） | ≤82 | ||
Average flow rate（Nm3/h） | 1800 | ||
Size(mm) | Preposition of separated Skids | 3600*2380*1800 | |
Boosted Skids | 4000*2420*2680 | ||
Average Electricity consumption（kW.h/ Nm3） | 0.04 | ||
Standard configuration | Container | Standard | |
Motor | Nanyang | ||
Hydraulic Parts | Huade、Huaye、Rexroth | ||
PLC Control Cabinet | Siemens（China）S7-200 | ||
Valve、Connector | Imported | ||
Option | Option 1 | Explore proof heater, suit to cold place. | |
Option 2 | Space heater, suit to cold place. | ||
3. Characteristics
1. Mechanical security protector and interlock protection, safety valve will warn on over pressure;
2. Embedded gas leakage monitor and warning system to guarantee the safety;
3. RS-485 interface for remote access; Embedded air supply system for instrument.
4. Working mode can be single pump single cylinder and double pump double cylinder to meet different efficiency requirement;
5. The wellhead gas leakage is very less and bring profit to customer and protect environment.
