- Place of Origin: wuhan
- Brand Name: qidakon
- Model Number: 2YZ1500-74
1. Product Introduction.

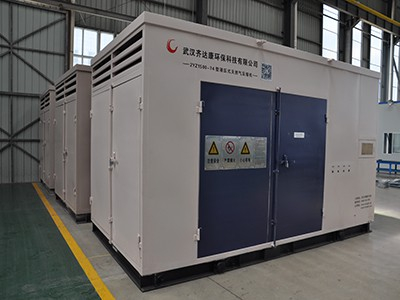

2YZ1500-74 type hydraulic reciprocating compressor is applied to the CNG draught station of daily gas volume 15000-25000Nm3，the gas storage reservoir or Cylinder and PLC control cabinets are NOT integrated into the container.
2. Parameters.
Key technical data | Working temperature（℃） | -40-40 |
Suction pressure（MPa） | 3-20 | |
Discharge pressure（MPa） | 25 | |
Flow rate（Nm3/h） | 360-2500 | |
Average flow rate（Nm3/h） | 1500 | |
Motor Power（kW） | 2×37 | |
Average electricity consumption （kW.h/Nm3） | 0.04 | |
Noise（dB（A）） | ≤75 | |
Size（mm） | 5000×2600×2750 | |
Total Power（kW） | 82 | |
Standard configuration | Container | Standard |
Motor | Nanyang | |
Hydraulic Parts | Huade、Huaye、Rexroth、Youyan | |
PLC Control Cabinet | Siemens（China）S7-200 | |
Valve、Connector | Imported | |
Option | Option 1 | Explore proof heater, suit to cold place. |
Option 2 | Space heater, suit to cold place. |
3. Characteristics
1. Embedded energy storage pressure monitor and control the gas charge sequence and storage pressure;
2. Adjust to smoothly work in the peak hours, improve productivity and decrease the cost;
3. Embedded gas leakage monitor and warning system to guarantee the safety;
4. RS-485 interface for remote access;
5. Embedded air supply system for instrument.
