- Place of Origin: wuhan
- Brand Name: qidakon
- Model Number: 2YZ1000-44JG
1. Product Introduction.

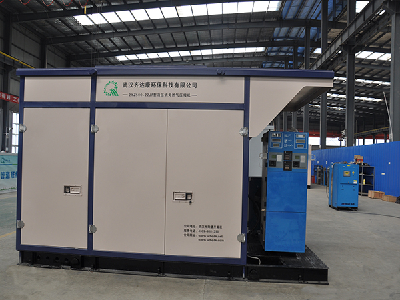

2YZ1000-44JG type hydraulic reciprocating compressor is applied to the CNG draught station of daily gas volume 10000-15000Nm3,the gas storage reservoir or Cylinder and PLC control cabinets are ALREADY integrated into the container.
2. Parameters.
Key Technical Data | Working temperature(℃) | -40-40 |
Suction pressure(MPa) | 3-20 | |
Discharge pressure(MPa) | 25 | |
Flow rate(Nm3/h) | 250-2300 | |
Average flow rate(Nm3/h) | 1000 | |
Motor Power(kW) | 2×22 | |
Average electricity consumption (kW.h/Nm3) | 0.04 | |
Noise(dB(A)) | ≤75 | |
Size(mm) | 7990×2460×3900 | |
Dispenser(units) | 2 | |
Gas storage cylinders(m3) | 6(Actual 5.5) | |
Total Power(kW) | 48 | |
PLC control cabinet(set) | 1 | |
Standard configuration | Container | Standard |
Motor | Nanyang | |
Hydraulic Parts | Huade、Huaye、Rexroth 、Youyan | |
PLC Control Cabinet | Siemens(China)S7-200 | |
Valve、Connector | Imported | |
Discharge column | Qidakon integrated | |
Dispenser | Chongqing Naide, HQHP,2 guns 3 lines. | |
Gas Cylinder | Luxi or others | |
Option | Option 1 | Explore proof heater, suit to cold place. |
Option 2 | Space heater, suit to cold place. | |
Option 3 | Mass Flow meter, E H or Rosemount |
3.Characteristics
1. Integrated double column of gas charge and two cascades can work together in the peak time and guarantee no pause during the transition of cascades;
2. Embedded energy storage pressure monitor and control the gas charge sequence and storage pressure;
3. Adjust to smoothly work in the peak hours, improve productivity and decrease the cost;
4. Embedded gas leakage monitor and warning system to guarantee the safety;
5. RS-485 interface for remote access; embedded air supply system for instrument.
